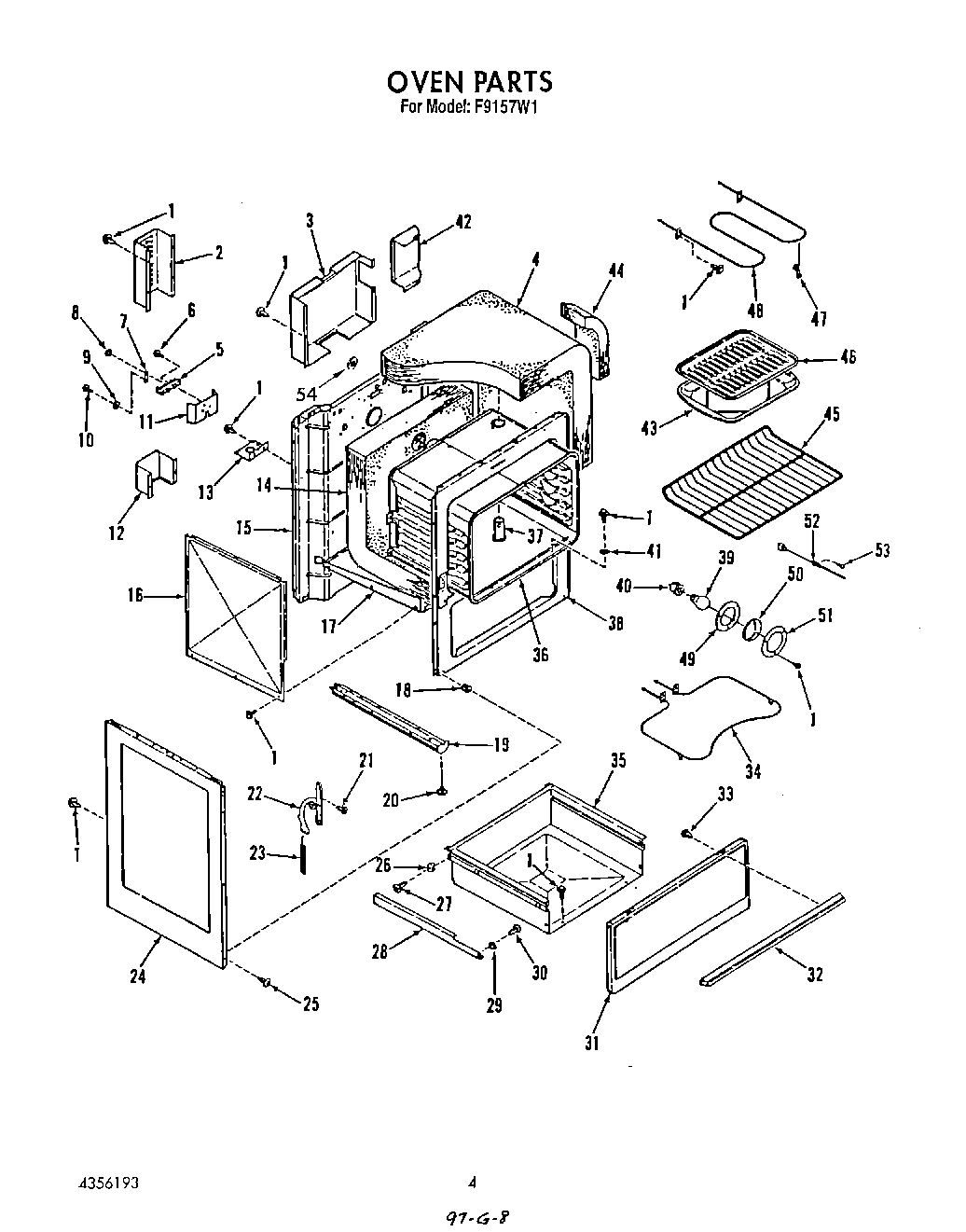

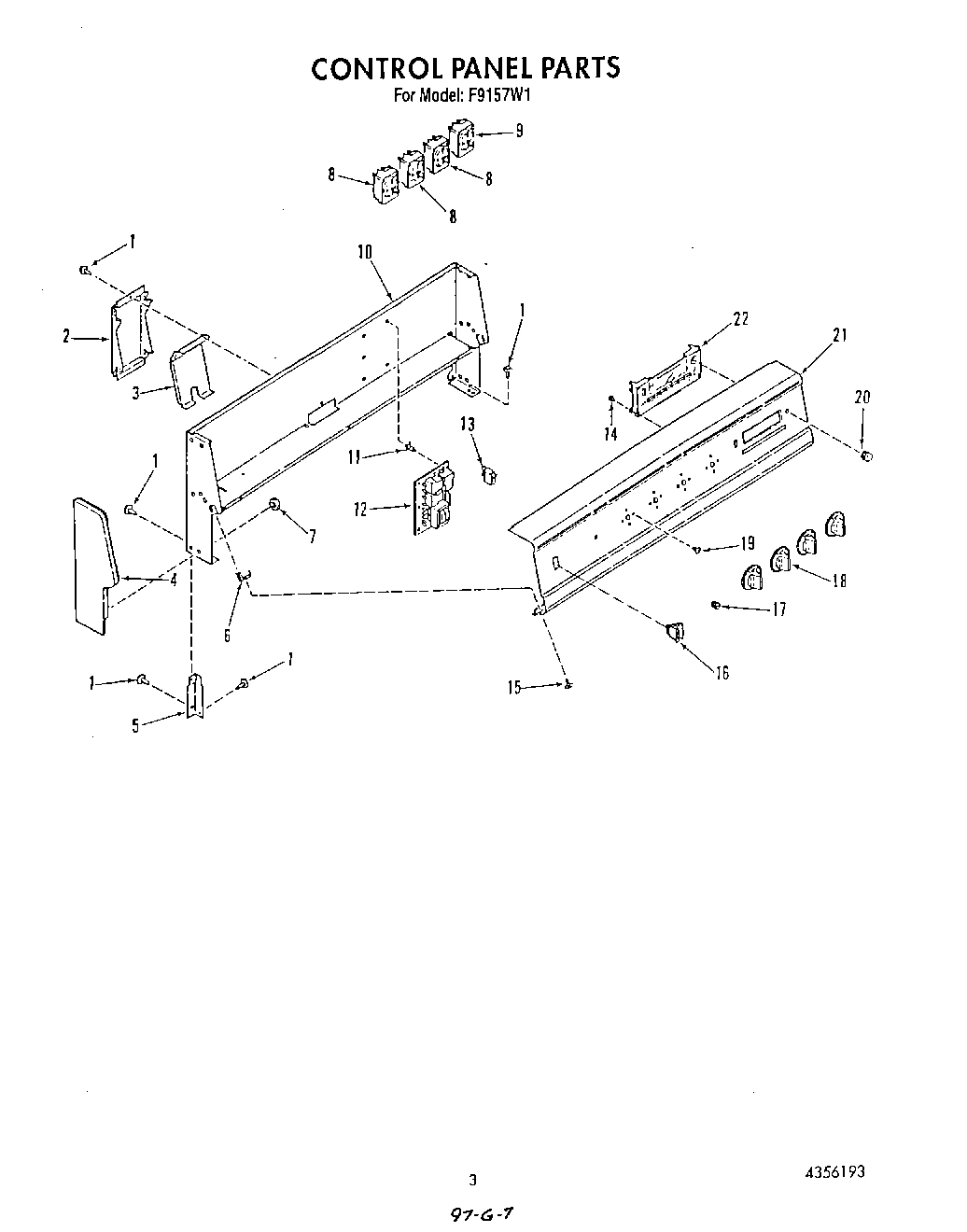

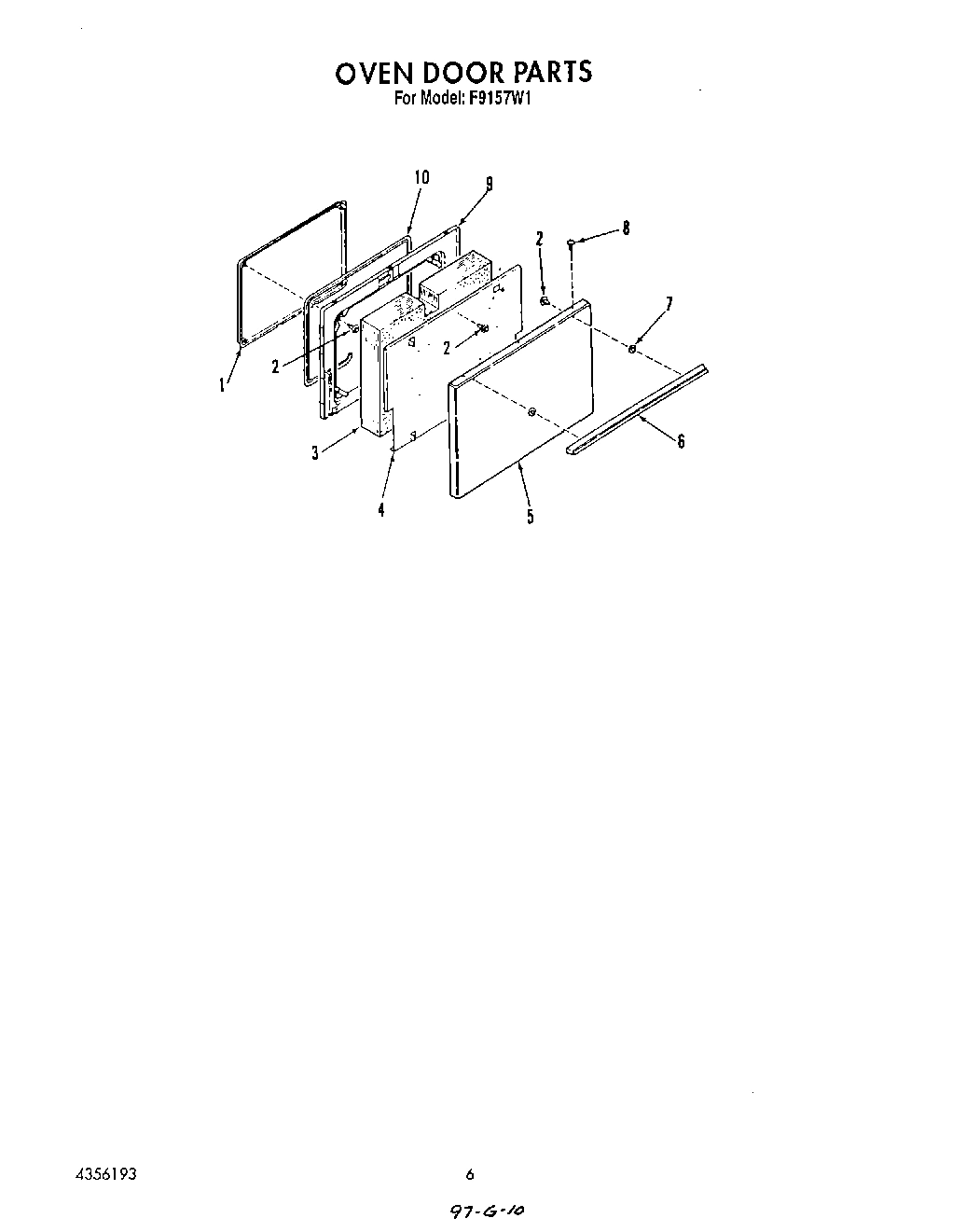

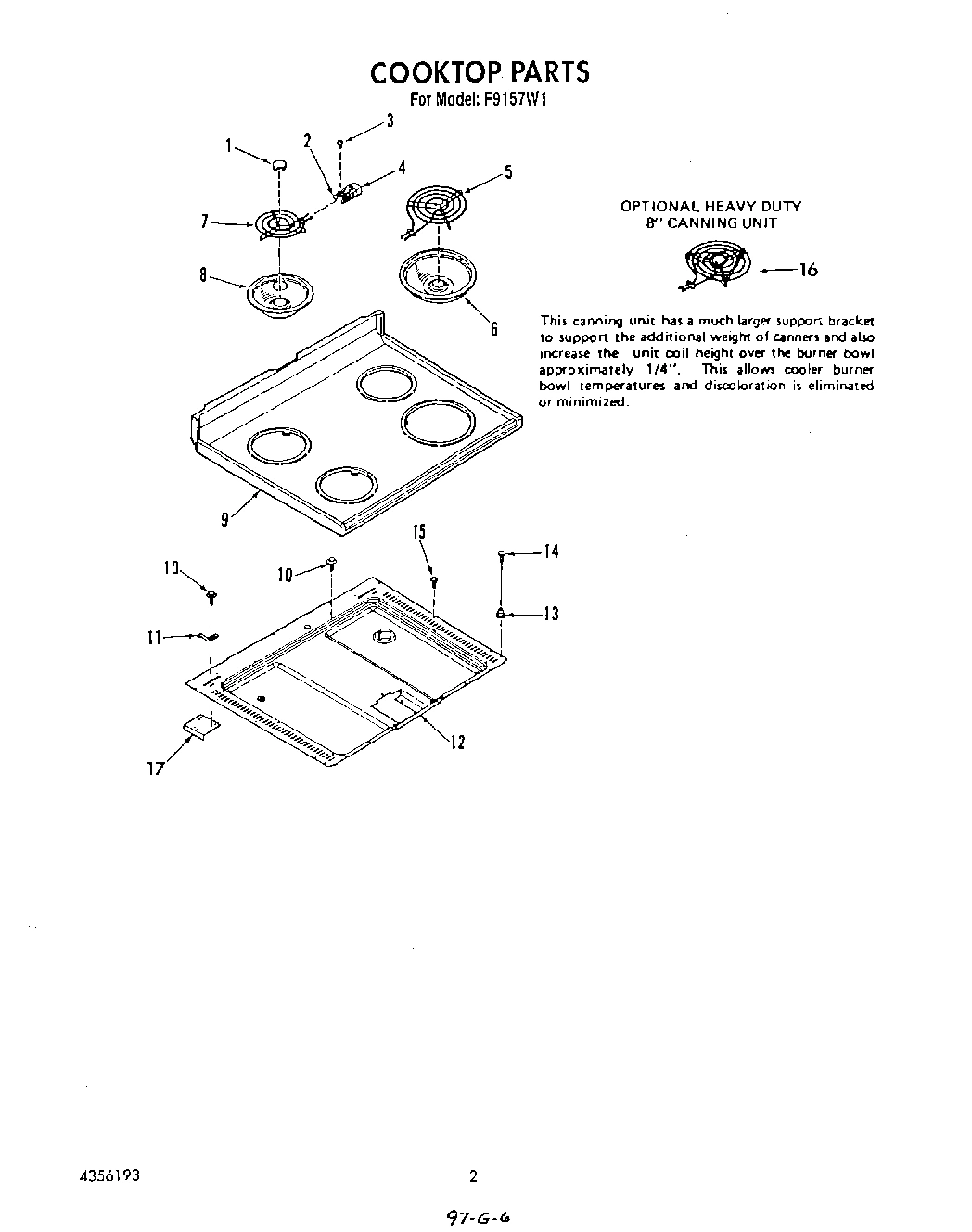

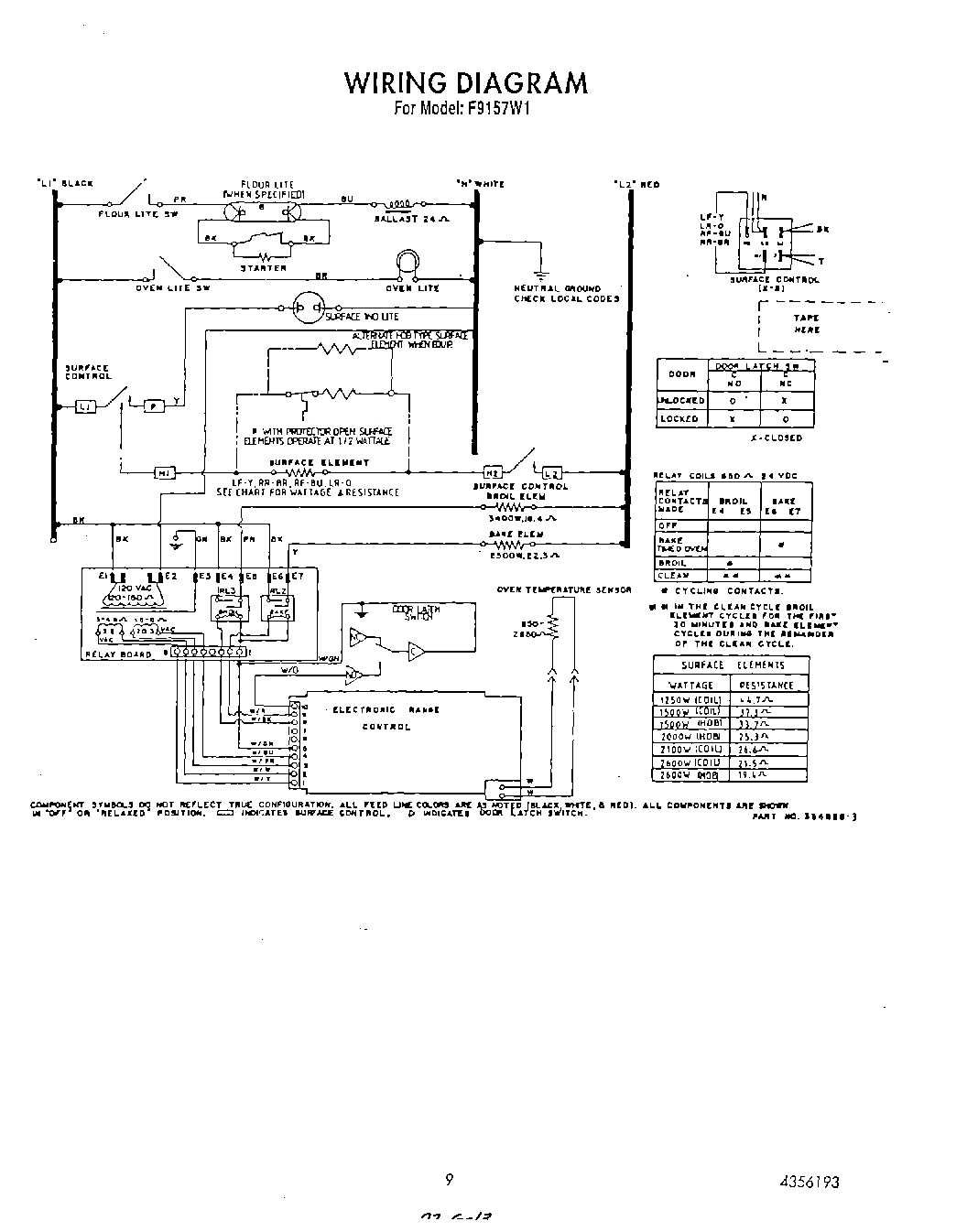

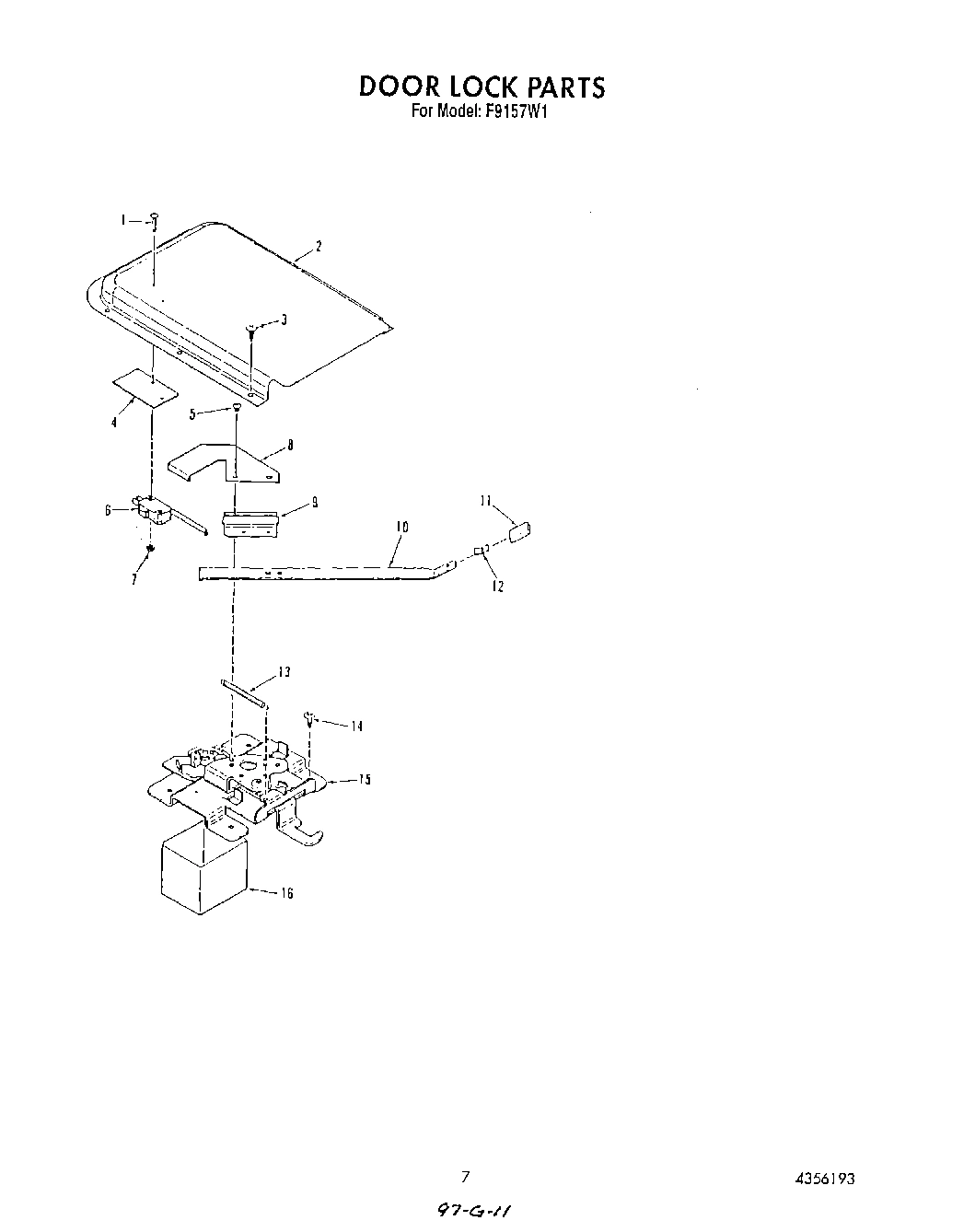

Model Whirlpool F9157^1 – Common Parts &amp; Diagrams

1

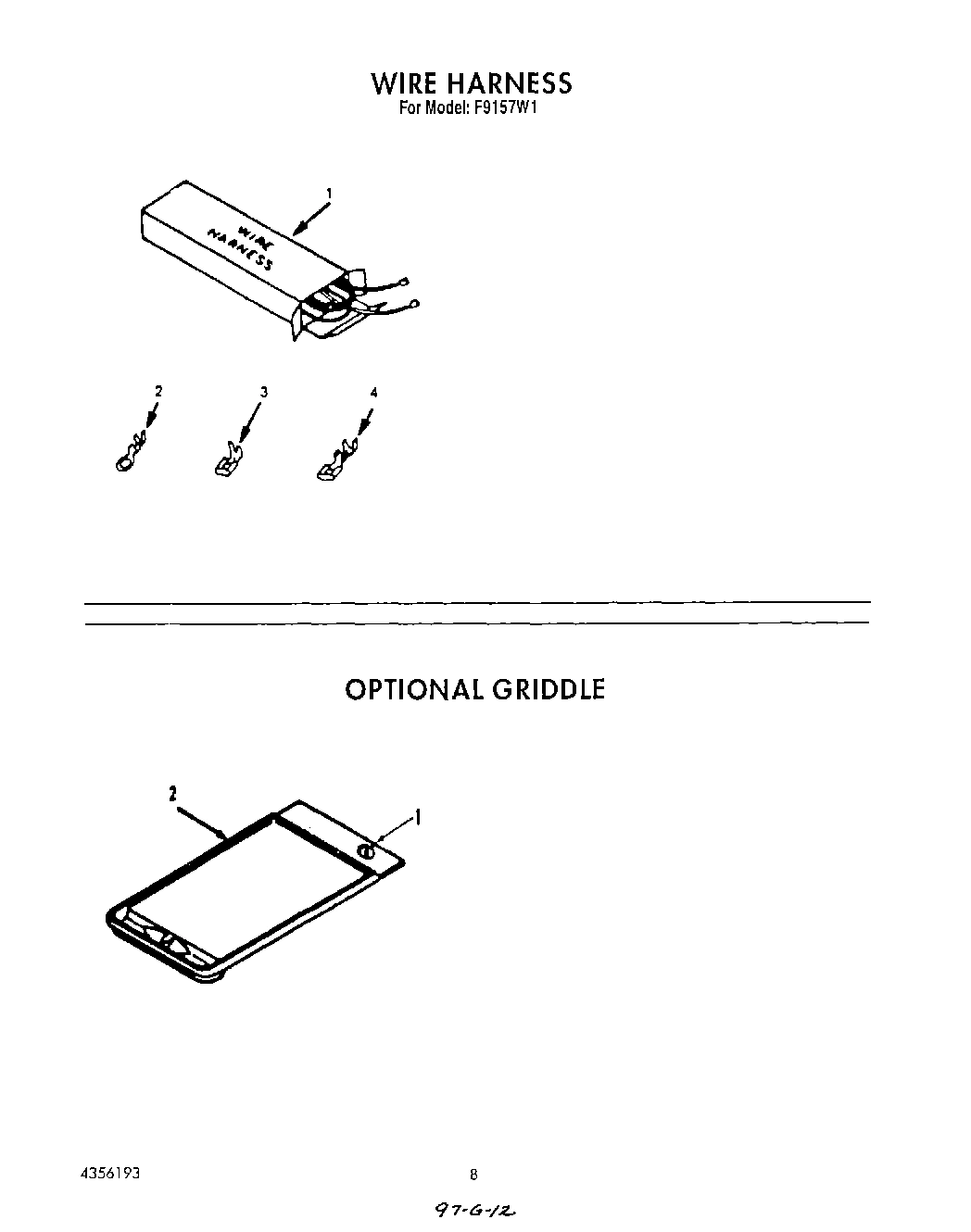

Wire Harness (Control, Clock/Oven) WPL 4338556 Contact Us For Availability

1

Wire Harness (Lock Switch) WPL 4338557 Contact Us For Availability

1

Wire Harness (Sensor) WPL 4338559 Contact Us For Availability

1

Wire Harness (Main) WPL 4338561 Contact Us For Availability

1

Wire Harness (Main Top) WPL 4342824 Contact Us For Availability

1

Thermometer WPL 4350503 Contact Us For Availability

1

Plug, Lining WPL 4337956 Contact Us For Availability

1

Medallion (4 Req) WPL 4332691 Contact Us For Availability

2

Set-On-Griddle WPL 4324876 Contact Us For Availability

2

Eyelet Terminal WPL 4325031 Contact Us For Availability

2

Raceway, Wire WPL 4337189 Contact Us For Availability

2

Clip, Term. Blk. (4 Req) WPL 4336966 Contact Us For Availability

2

Wire Shield, Upper WPL 4335208 Contact Us For Availability

3

Flag Terminal WPL 4325035 Contact Us For Availability

3

Insulation WPL 4354952 Contact Us For Availability

3

Cover, Raceway WPL 4337190 Contact Us For Availability

3

Screw, No.7-32 x 5/16 WPL 4327985 Contact Us For Availability

3

Wire Shield WPL 4337567 Contact Us For Availability

4

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $5.40

4

WP285432 Whirlpool Terminal Backorder WPL WP285432 $2.51

4

Insulator, Switch WPL 4335973 Contact Us For Availability

4

Faston Terminal (3/16``) WPL 4325036 Contact Us For Availability

4

Retainer, Insulation WPL 4335004 Contact Us For Availability

4

End Cap (Left) WPL 4337670 Contact Us For Availability

4

End Cap (Right) WPL 4337699 Contact Us For Availability

4

Insulation WPL 4338454 Contact Us For Availability

5

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $15.88

5

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

5

Screw, No.8-32 x 1/8 WPL 4323636 Contact Us For Availability

5

Panel, Outer Door (White) WPL 4336987 Contact Us For Availability

5

Panel, Outer Door (Almond) WPL 4336988 Contact Us For Availability

5

Support, Backguard (Right) WPL 4337180 Contact Us For Availability

5

Support, Backguard (Left) WPL 4337181 Contact Us For Availability

6

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $4.48

6

Switch, Micro WPL 4337452 Contact Us For Availability

6

Clip, Backguard WPL 4338226 Contact Us For Availability

6

Screw, No.10-32x1 WPL 4331572 Contact Us For Availability

7

WP308499 Whirlpool Nut Backorder WPL WP308499 $3.70

7

WPY04100165 Whirlpool Surface Element In Stock WPL WPY04100165 $35.36

7

Hex Nut, No.4-40 WPL 4329607 Contact Us For Availability

7

Spacer WPL 4323997 Contact Us For Availability

7

Strap, Ground WPL 4335219 Contact Us For Availability

8

W10900107 Whirlpool Oven Surface Element Swit In Stock WPL W10900107 $28.79

8

WP776338 Whirlpool Compactor Nut Backorder WPL WP776338 $7.28

8

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $3.06

8

Lever, Switch WPL 4337611 Contact Us For Availability

9

Retainer, Handle WPL 4337056 Contact Us For Availability

9

Lining WPL 4336608 Contact Us For Availability

9

Cooktop (White) WPL 4336716 Contact Us For Availability

9

Cooktop (Almond) WPL 4336756 Contact Us For Availability

9

Washer WPL 4327921 Contact Us For Availability

Handle, Latch WPL 4337057 Contact Us For Availability

Seal, Door WPL 4342564 Contact Us For Availability

Frame, Backguard WPL 4337138 Contact Us For Availability

Screw No.10-32x7/16 WPL 4331573 Contact Us For Availability

Knob, Lock WPL 4337568 Contact Us For Availability

Spacer WPL 4337387 Contact Us For Availability

Hinge-Main Cooktop (Left) WPL 4337071 Contact Us For Availability

Hinge-Main Cooktop (Right) WPL 4337119 Contact Us For Availability

Hinge-Main WPL ARI57106A7 Contact Us For Availability

Insulator, Service Cord WPL 4335209 Contact Us For Availability

Clip, Knob WPL 4335705 Contact Us For Availability

Relay Circuit Board WPL 4338118 Contact Us For Availability

Bottom, Burner Box WPL 4336909 Contact Us For Availability

Wire Cover, Lower WPL 4335222 Contact Us For Availability

Spring, Lock-Handle WPL 4331536 Contact Us For Availability

Indicator Light WPL 4336633 Contact Us For Availability

Strike WPL 4337082 Contact Us For Availability

Plate, Mounting WPL 4335223 Contact Us For Availability

14

Screw, No.6-32 x 5/16 WPL 4323476 Contact Us For Availability

14

Screw No.6-32x7/8 WPL 4335220 Contact Us For Availability

14

Insulation, Back WPL 4353609 Contact Us For Availability

15

Latch Assembly WPL 4337053 Contact Us For Availability

15

Cover, Rear WPL 4337044 Contact Us For Availability

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $30.38

Retainer, Insulation WPL 4342826 Contact Us For Availability

Canning Element (Optional) 8`` (240 Volt) WPL 4335055 Contact Us For Availability

Canning Element (Optional) 8`` (208 Volt) WPL 4335056 Contact Us For Availability

Retainer, Insul.-Sides (Lt/Rt) WPL 4353951 Contact Us For Availability

17

WP9750343 Whirlpool Light Lens Backorder WPL WP9750343 $2.84

17

Baffle, Burner Box WPL 4337587 Contact Us For Availability

17

Retainer, Lower Insulation WPL 4353950 Contact Us For Availability

18

Knob, Infinite WPL 4338029 Contact Us For Availability

18

Spacer, Expansion WPL 4331381 Contact Us For Availability

19

Screw No.8-32 x 3/16 WPL 4323479 Contact Us For Availability

19

Base W/Levelers, Lt/Rt WPL 4337332 Contact Us For Availability

20

Control Knob, Clock/Oven WPL 4338513 Contact Us For Availability

20

Levelers, Leg (4) WPL 4334800 Contact Us For Availability

21

Control Panel WPL 4338521 Contact Us For Availability

21

Screw WPL 4336631 Contact Us For Availability

22

Hinge-Oven Door (Left) WPL 4336784 Contact Us For Availability

22

Hinge-Oven Door (Right) WPL 4336783 Contact Us For Availability

22

Control, Clock/Oven WPL 4354962 Contact Us For Availability

23

Spring, Oven Door (Lt/Rt) WPL 4342945 Contact Us For Availability

24

Panel-Side (Lt/Rt) (White) WPL 4342569 Contact Us For Availability

24

Panel-Side (Lt/Rt) (Almond) WPL 4342570 Contact Us For Availability

25

Screw No.8x5/8 WPL 4331822 Contact Us For Availability

26

Block, Slide-Rear WPL 4325731 Contact Us For Availability

27

Screw, No.8-32 x 3/8 WPL 4323796 Contact Us For Availability

28

Support, Storage-Drawer WPL 4331092 Contact Us For Availability

29

Block-Slide, Front WPL 4325732 Contact Us For Availability

30

Screw No.10-32x17/22 WPL 4327611 Contact Us For Availability

31

Storage Front (White Panel) WPL 4336737 Contact Us For Availability

31

Storage Front (Almond Panel) WPL 4336738 Contact Us For Availability

32

Handle WPL 4337344 Contact Us For Availability

33

Screw No.10-32x1/2 WPL 4332521 Contact Us For Availability

34

Element, Bake (208 Volt) WPL 4334927 Contact Us For Availability

34

Element, Bake (240 Volt) WPL 4334928 Contact Us For Availability

35

Drawer, Storage WPL 4327658 Contact Us For Availability

36

Oven Body WPL 4337959 Contact Us For Availability

37

Tube, Vent WPL 4337059 Contact Us For Availability

38

Frame, Front WPL 4336956 Contact Us For Availability

39

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

40

W10856866 Whirlpool Light Socket In Stock WPL W10856866 $3.70

41

Washer WPL 4323979 Contact Us For Availability

42

Wire Shield WPL 4336373 Contact Us For Availability

44

Insulation, Top And Sides (Front) WPL 4354262 Contact Us For Availability

45

Rack, Oven WPL 4334809 Contact Us For Availability

46

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $29.96

47

Support, Element WPL 4338587 Contact Us For Availability

48

WP4334925 Whirlpool Broil Element Backorder WPL WP4334925 $64.89

49

Seal, Lens WPL 4324481 Contact Us For Availability

50

Lens, Oven Bulb WPL 4324415 Contact Us For Availability

51

R WPL 4324482 Contact Us For Availability

52

WPL 4337170 WPL 4337170 Contact Us For Availability

53

WPL 4324445 WPL 4324445 Contact Us For Availability

54

WPL 4336997 WPL 4336997 Contact Us For Availability
